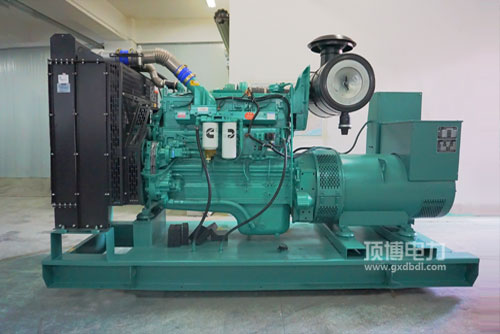

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用起倾向柴油经济条件性好: 为先进的柴油掌握系统软件性，特有的STC、ESTC 等级划分掌握系统软件性，独特设计构思的活塞杆顶部自燃物室，直流电引射柴油，加以雾化吸入，自燃物加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用起主观因素瞬态的性能出众: 完美无瑕的起主观因素整体性装修设计，结合康明斯独具特色的EFC操作系统，抑制高精准性强，卡死精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用发起机升最大功率高: 整体化的设计紧密.形壮安装节省，启用有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50满足需要中华非高架道路再次步骤及亚洲Tier2. Tier 3释放法律法规让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可知性好， 汽车发驱动力程序运行及维护与新车保养新车保养便于，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力区域 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯发电机组用打着机的的特点：面积小， 减小变高， 防雨百叶窗自然空气加水，更易运行，移動车载电子开关电源的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机材质	最常用电机功率(kW)Prime Power	备用电源热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
